Lecture 02
Lecture: Site Design and Site Map. PDF Lecture
CSS Overview:
- Site CSS, local CSS, inline CSS;
- Styling Text
- CSS selector, Class, ID, Tag, Compound;
- Margins, Padding & the Box Model;
- Floats & Positioning

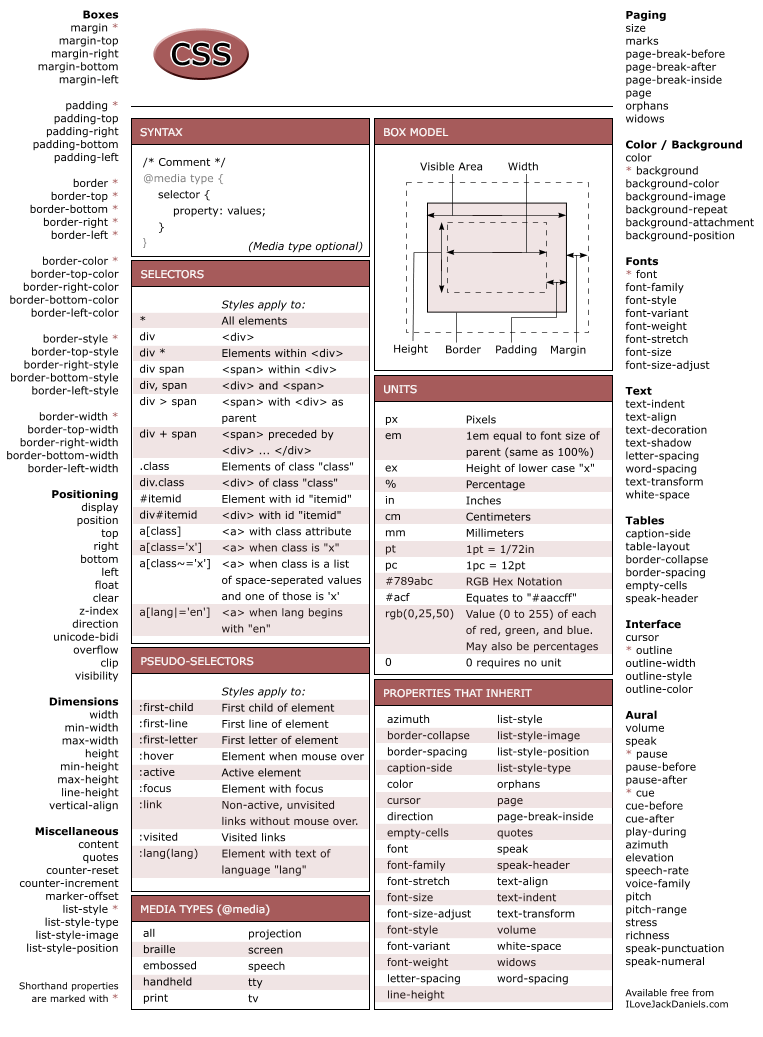

CSS cheat sheet.
Reads: http://www.w3schools.com/css/
Exercise:
Sample page

Basic HTML Skeleton:
<body>
  <div id="mainContainer">


<div id="logoBanner"></div>
    <div id="topNav">






 <div class="topMenu"><span class="currentPage">Current Tab</span></div>
<div class="topMenu"><a href="#">topNav02</a></div>
<div class="topMenu"><a href="#">topNav03</a></div>
<div class="topMenu"><a href="#">topNav04</a></div>
<div class="topMenu"><a href="#">topNav05</a></div>
    </div>
    <div id="promoImage"></div>
    <div id="content"> </div>
  </div>
  <div id="footer">copyright info</div>
</body>
site.css used in the sample page.

Overview of basic CSS, and CSS for layout.

Key CSS to be defined:
body { }
a{ }
a:hover { }

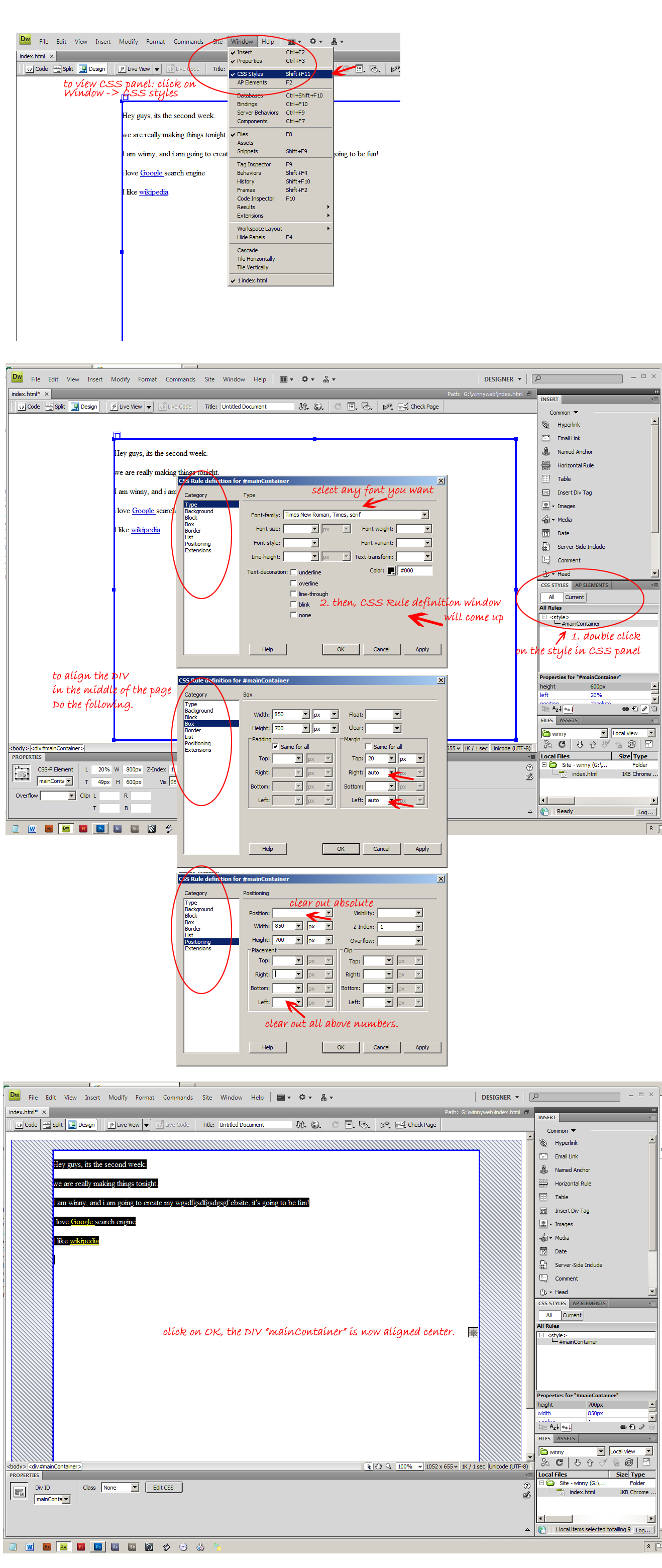

#mainContainer {
width: 960px;
margin-right: auto;
margin-left: auto; }
  #logoBanner {
width: 100%;
float: left; }
  #topNav {
width: 100%;
float: left; }


.topMenu { }
.topMenu a{ }
.topMenu a:hover{ }
.topMenu .currentPage{ }
  #promoImage {
height: 280px;
width: 100%;
float: left; }


#content {
width: 88%;
float: left;
margin-left: 50px; }
#footer { }
  DIV

Website design flow
  - Determine goals: what the site needs to accomplish
- Content is KING. Be CLEAR, CONCISE, orgnize the content.
- Architect the site: how the navigation works,
- Generate mockups.
- Build it from the protoypes/mockups.
- Test it

Site Type:
Brochure sites


http://doublediamondmoving.com/
http://fullmoonbbq.com/
http://alexanderhomesteadweddings.com/
E-Commerce sites
  http://nikeid.nike.com/
http://www.miniusa.com/
http://doopsuikerpoppies.be/
http://us.moo.com/
http://www.getconcentrating.com/
Entertainment sites


http://bjork.com/
http://ryanedgarmusic.com/
http://www.getconcentrating.com/
http://www.bloedoranjegallery.nl/
News sites


http://www.cnn.com/
http://www.bbc.com/
http://www.npr.org/
Blogs


http://www.webdesignerdepot.com/
http://ma.tt/
http://inspiredology.com/
http://freelanceswitch.com/
Educational sites

  Due: Site Map in your webspace
Note that you are not married to this proposal, you can keep revise it till
week 3.
